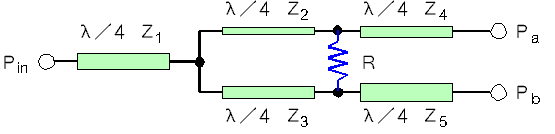

威尔金森耦合器设计 | Unequal Split Wilkinson Coupler Calculator

2012-10-10 点击:0 我要评论(0)

K Zo[ohm] >>>

K = Pb/Pa ( Example Pa:Pb = 1:3 >>> K = 3 )


Z1[ohm] Z2[ohm] Z3[ohm]
Z4[ohm] Z5[ohm] R[ohm]

[ How to use ]
1. Input a division ratio and characteristic impedance, and click on [ Calculate ] button.
2. A calculation result is indicated.
