最大平坦高通滤波器设计 | Maximally Flat HPF Calculator

2012-10-10 点击:0



n   fc [MHz]   Zo [ohm]   >>>

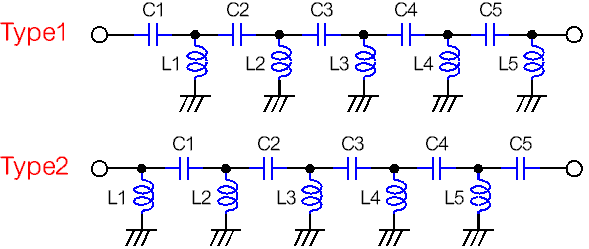

Type1 C1 [pF]   L1 [nH]   C2 [pF]   L2 [nH]   C3 [pF]
L3 [nH]   C4 [pF]   L4 [nH]   C5 [pF]   L5 [nH]


Type2 L1 [nH]   C1 [pF]   L2 [nH]   C2 [pF]   L3 [nH]
C3 [pF]   L4 [nH]   C4 [pF]   L5 [nH]   C5 [pF]

[ How to use ]
1. Input element number (n), cutoff frequency (fc), characteristic impedance (Zo),
and click on [ Calculate ] button.
2. A calculation result is indicated.
